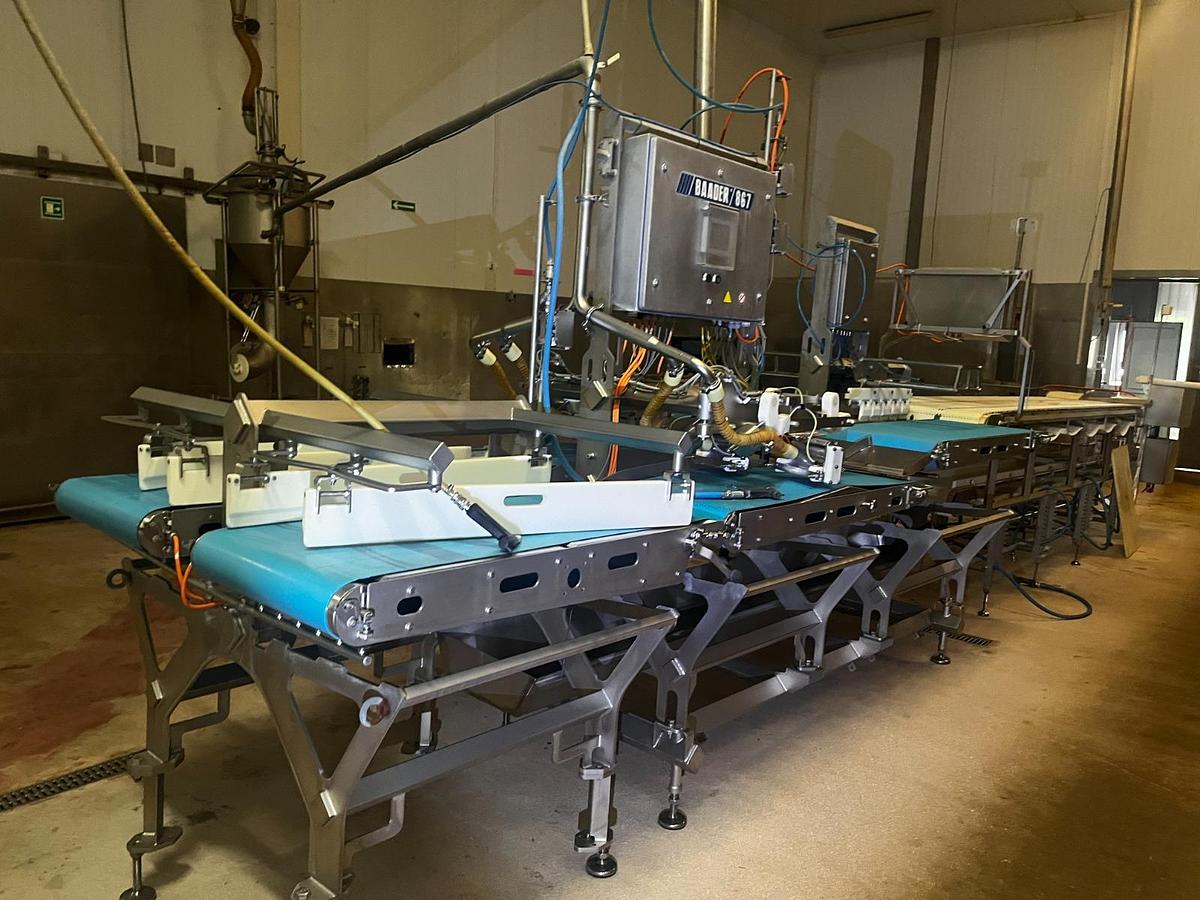

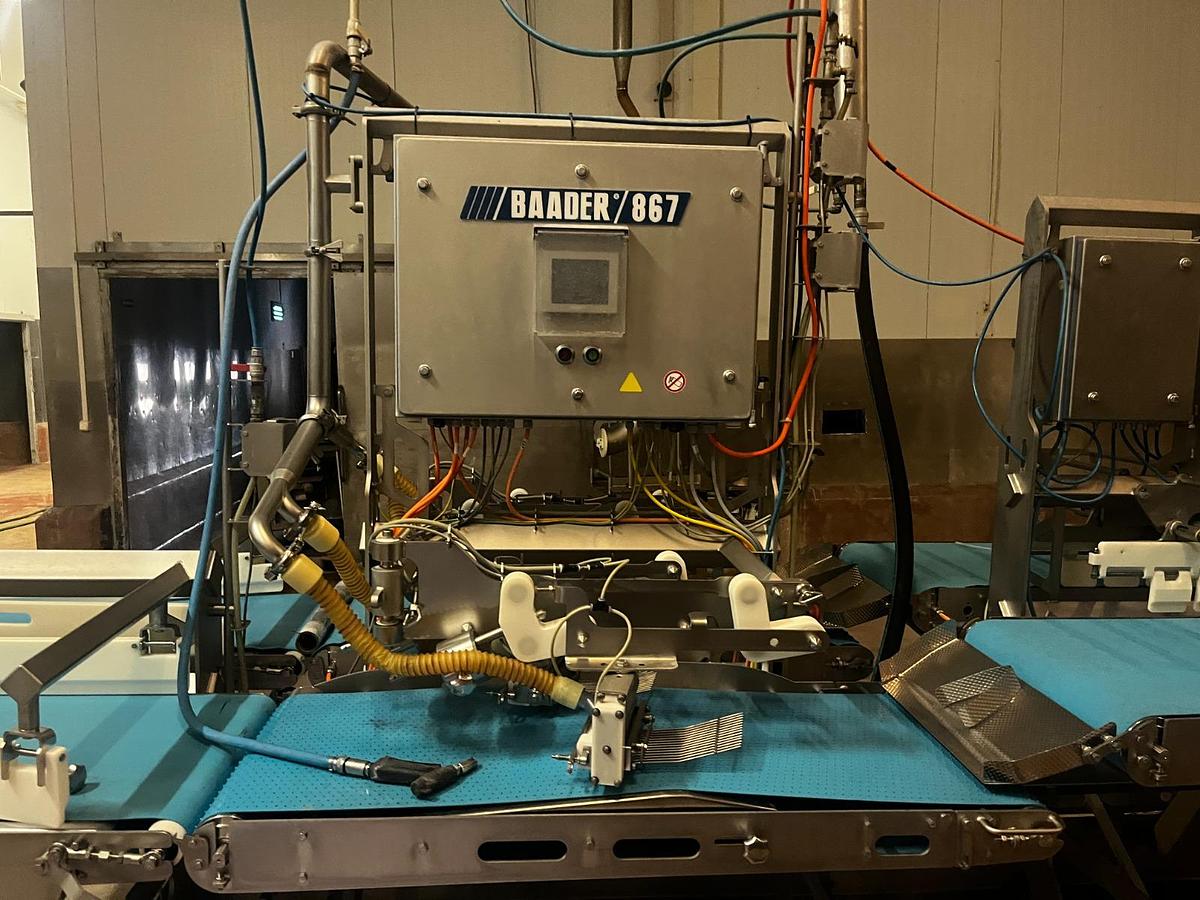

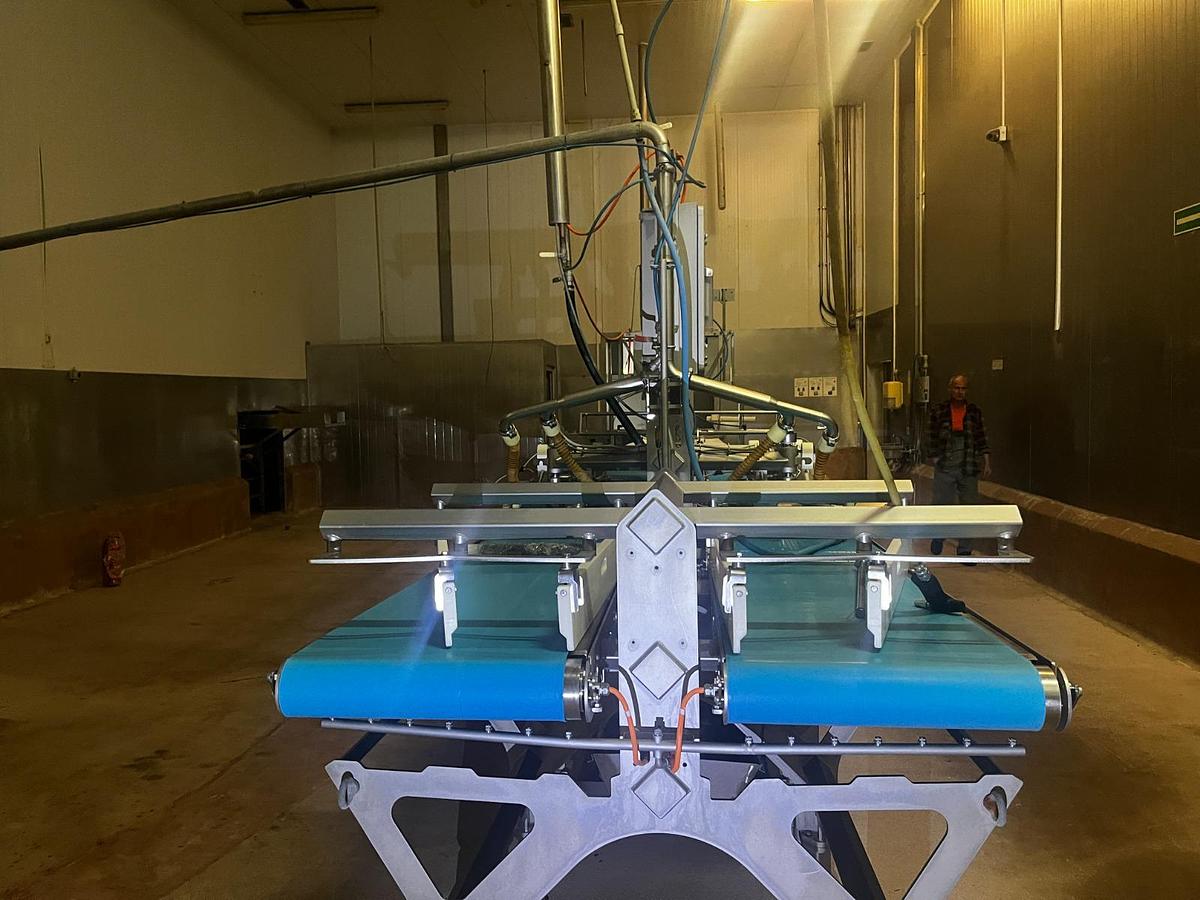

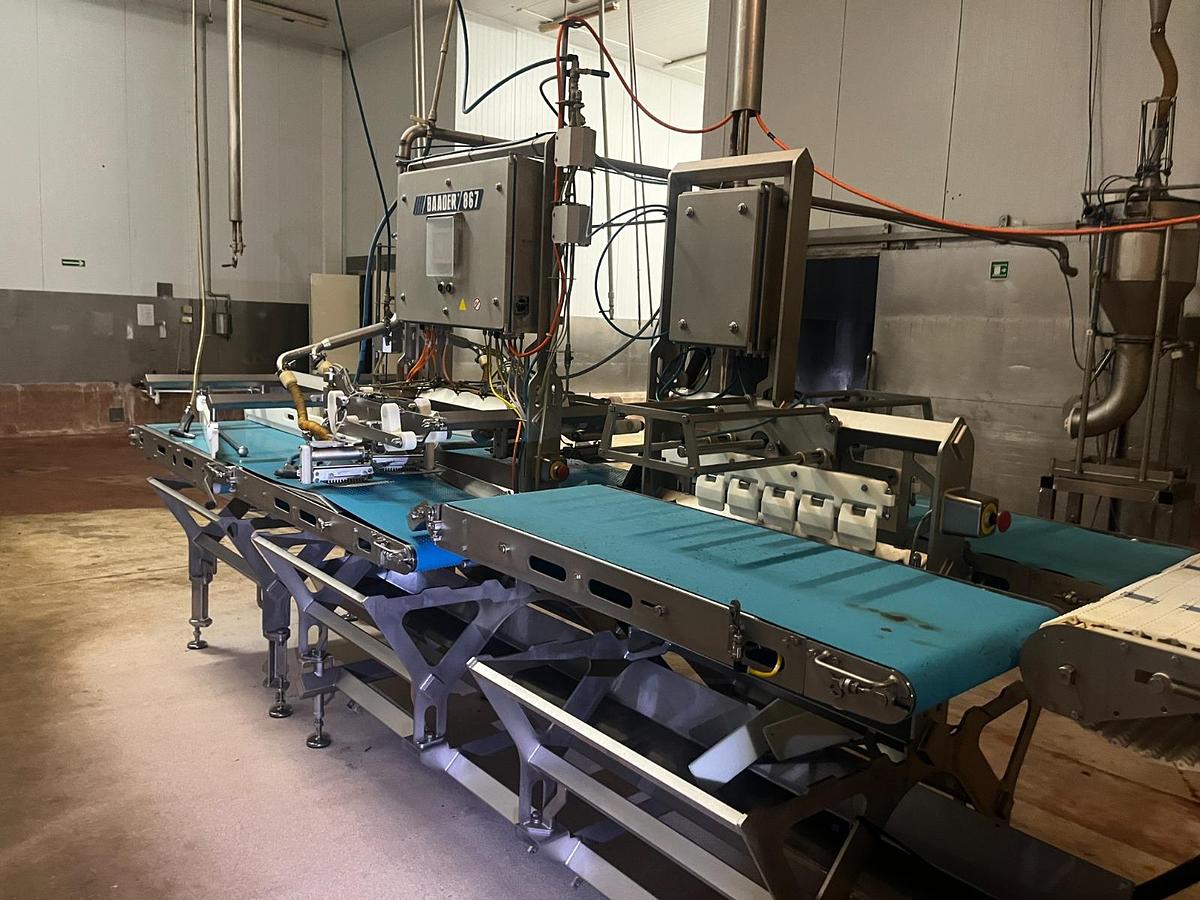

BAADER 867 4-lane Pinbone Remover

The BAADER 867 is one of the most efficient pinbone removers on the market today. As a four-lane machine, it features patented double grip rollers designed for removing the most difficult bones from post-rigor fillets without the need for aggressive machine settings.

The cyclone vacuum system removes bones and water very efficiently from the surface of the fillets, keeping the pin wheel clean and ensuring a high level of hygiene.

Adjustment of the programmes for different fillet sizes and fish qualities is easily performed and selected on the overview touch panel.

Key Features

• High efficiency and high yield
• Patented double grip rollers for better grip
• Less gaping due to gentle bone removal
• Cyclone vacuum system separates bones and water
• High capacity – up to 40 fillets/min
• Easy to clean and maintain
• Equipped with a 4-lane Fillet Divider

Specifications

• Fish species: Salmon, sea trout
• Working range (approx.): * Fish size: 3–7
• Fillet width: up to 250 mm
• Throughput – 4 lane (depending on size and quality):
• Salmon: up to 40 fillets/min
• Sea trout: up to 20 fillets/min
• Electricity: 400V / 50Hz
• Compressed air: Approx. 75 l/min (at 6 bar pressure for Fillet Divider)
• Power consumption: 0.9 kW (Pinbone Remover) + 5.5 kW (Vacuum System)
• Water consumption: Approx. 20 l/min (Pinbone Remover) + 4 l/min (Fillet Divider)
• Total weight: Approx. 500 kg
