2020 MAREL Smart Line grader
Specifications
| Manufacturer | MAREL |
| Model | Smart Line grader |
| Year | 2020 |
| Stock Number | 00094 |
| Raw material length | Max. 550 mm |
| Raw material width | Max. 250 mm |
| Weighing range | 20-6000 g |
| Raw material | Most fish, non-sticky |
| Weighing capacity | Theoretical weighing capacity 180/min |
Description

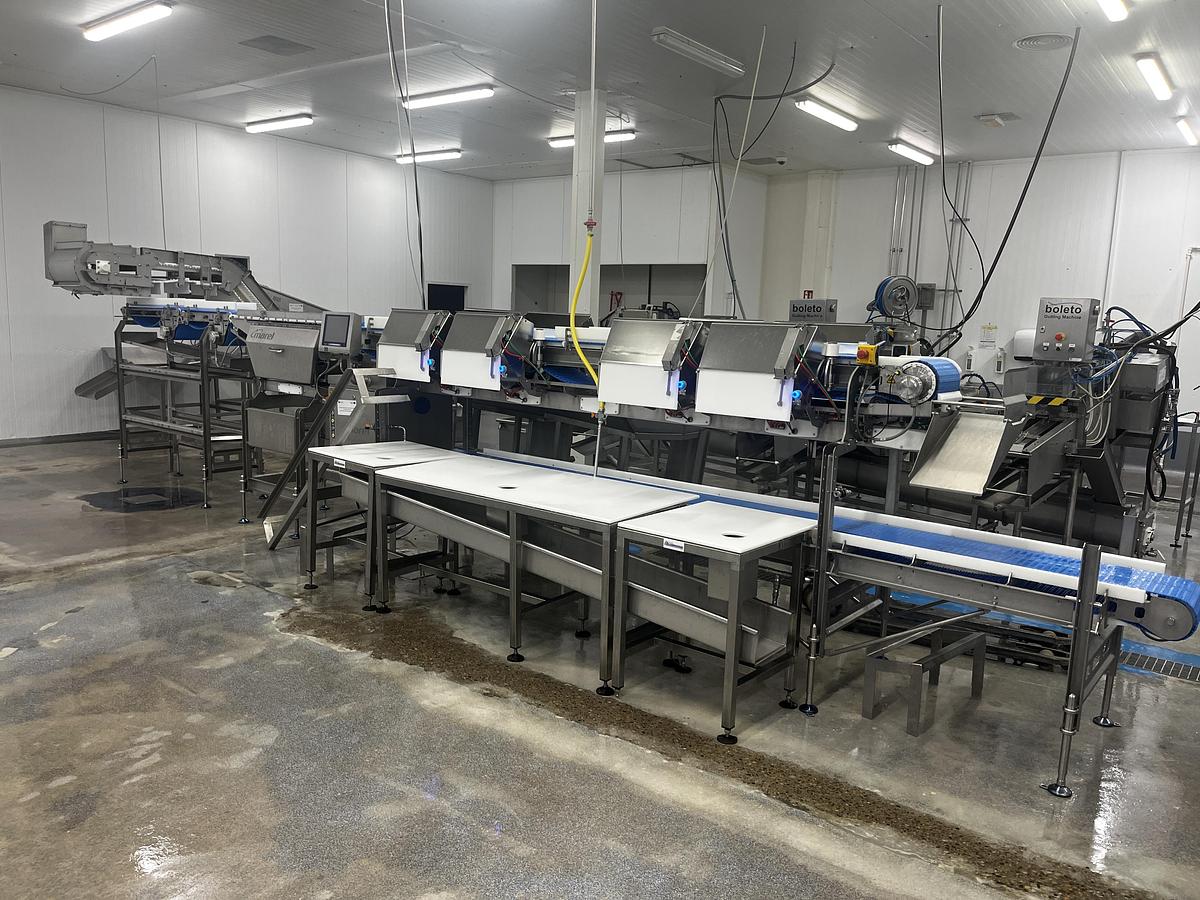

SMARTLINE GRADER
It allows for sorting raw materials weighing from 100g to 500g and approximately 40cm in length, achieving a sorting efficiency of 60 pieces per minute. The device allows for portioning the product according to preset weight ranges, i.e., from 100g to 500g, with 50g increments. The sorter is equipped with an on-machine labeling system. The proposed SmartLine Grader sorting system consists of the following components:

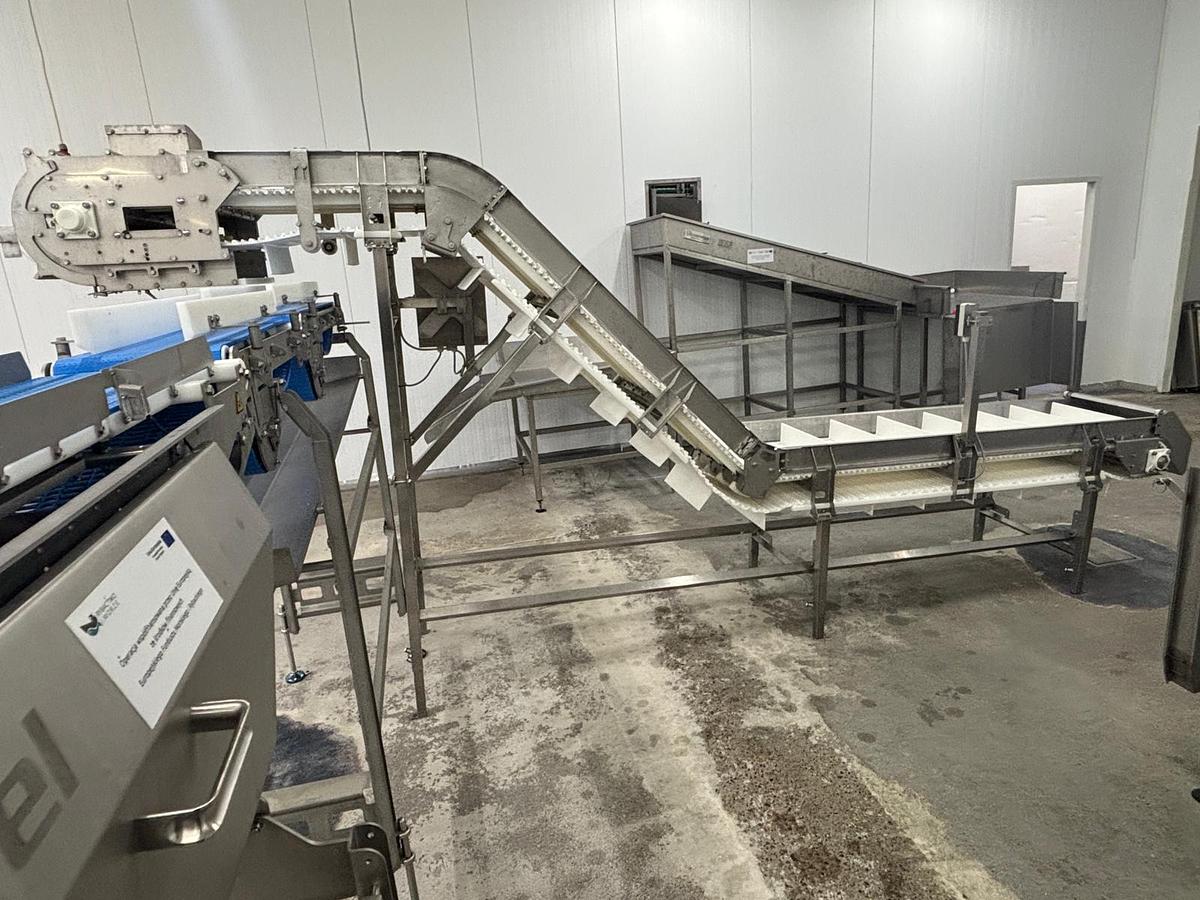

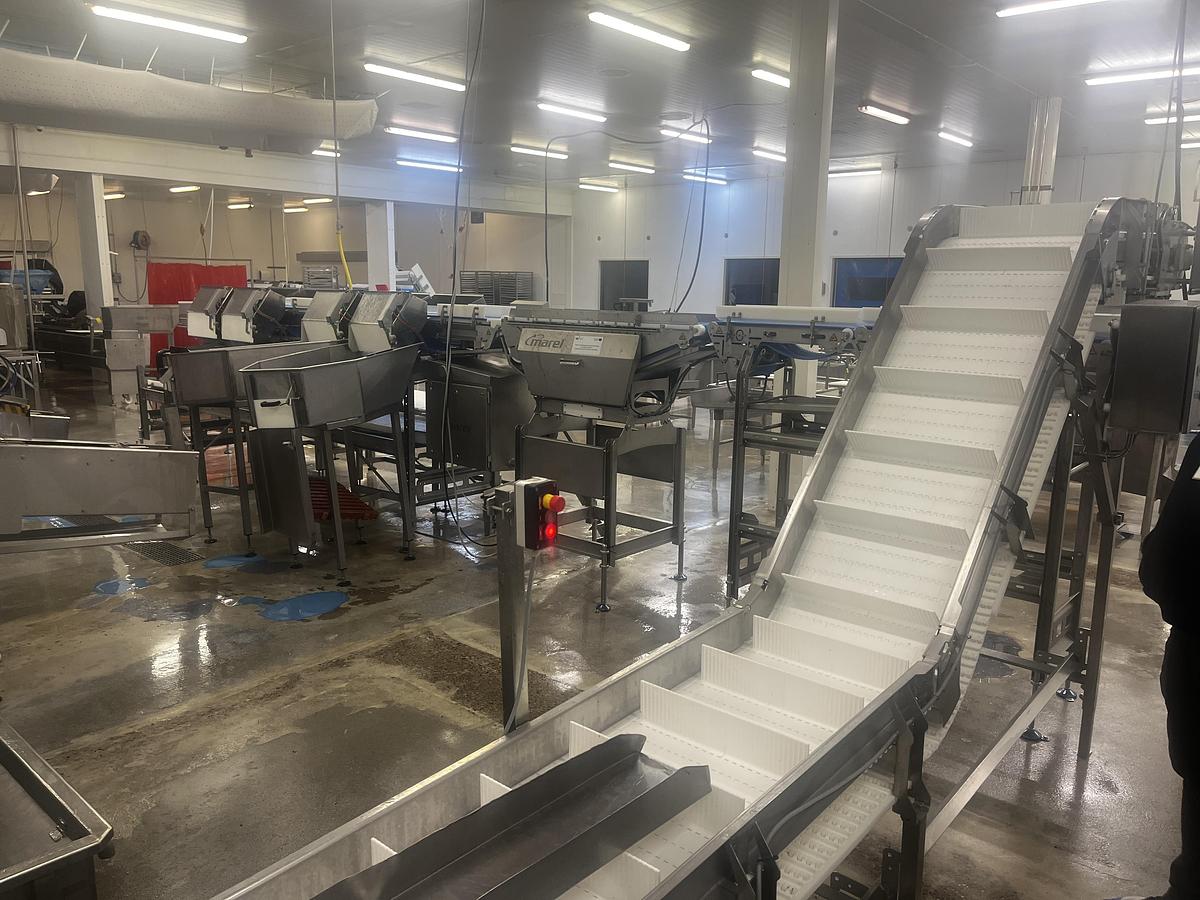

a. Two-stage feeding system consisting of two GR8001 conveyors
a. Feed conveyor (L: 1000 mm)
b. Accelerator conveyor (L: 750 mm)
b. Weighing unit with GR8210 computer

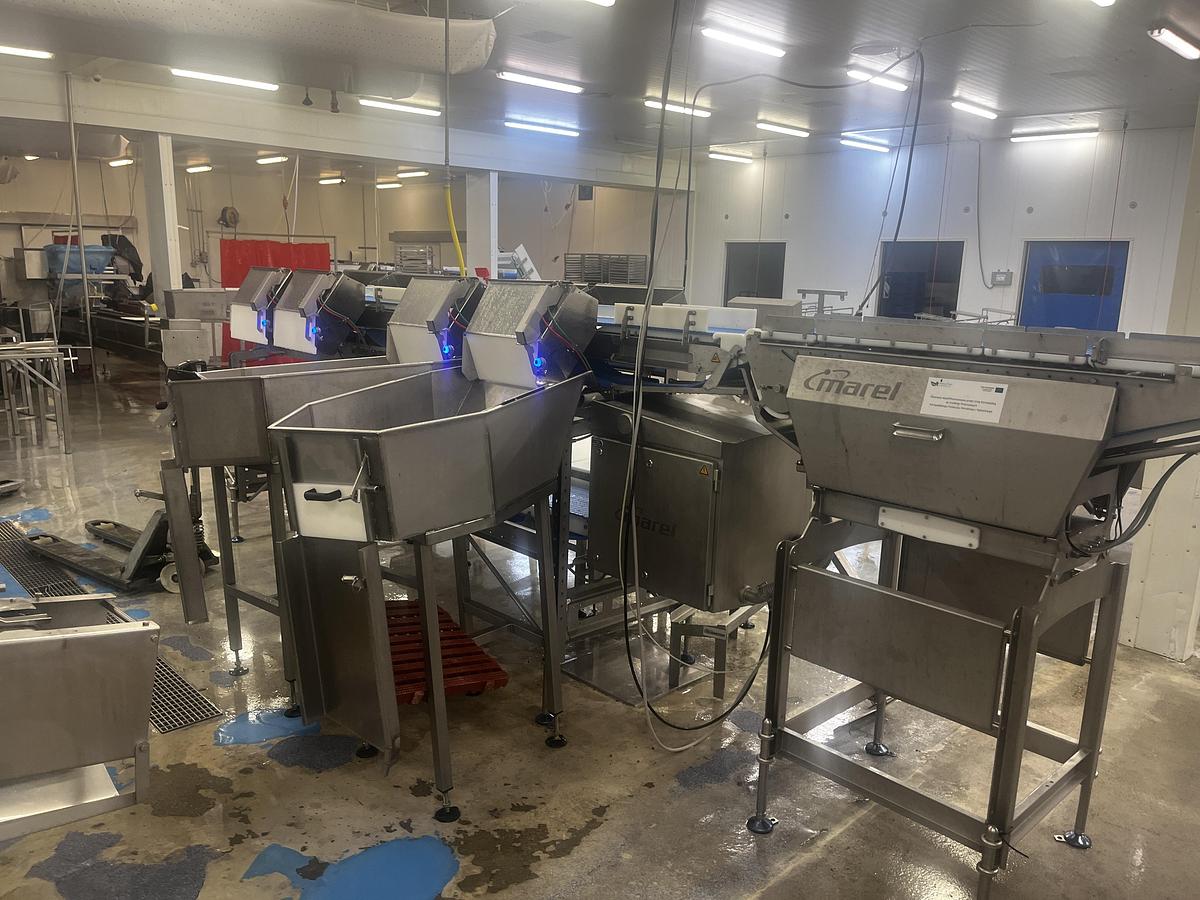

c. Separator system: GR8330 double-sided 2 x 4 gates with container label printing (printers located on each side: 2 in total)
d. INNOVA system for labeling and monitoring the SmartLine Grader machine operation
SmartLine Grader: Specifications
Software A600
Weighing
Operating temperature +7°C to 40°C (+45°F to 104°F)
Number of platforms 1
Platform length 250 + 500 mm or to be specified
Weighing unit length 1450 mm
Weighing accuracy** 1.0g for 1 St. Dev.
Dimensions
Line height 1450mm +/-100mm
Belt width 250mm
Nominal speed 1.5 m/s (78 m/min), 50Hz.
Belt speed range Default (0.8-2.0m/s)
Machine length According to the drawing 8710 mm
Construction
Material: AISI 304 Stainless steel, PE, POM
Drive: Center drive with drum motor
Belt type: Intralox S1500 White/Blue

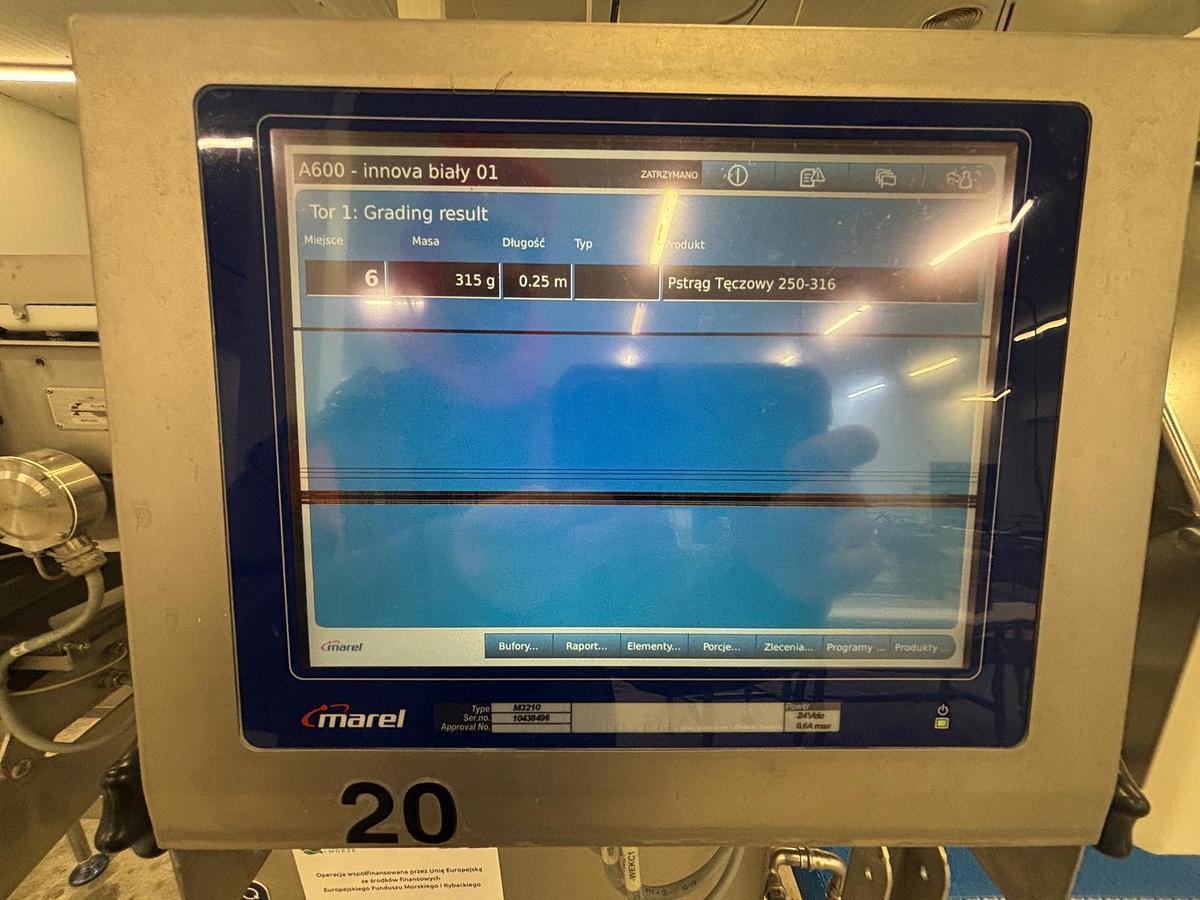

Display: M3210
Resistance class*** IP69K Compliance
Cleaning: Normal methods, soap/foam, detergents
Capacity:
Capacity** Max. 60 - 80 pcs/minute. Practical for manual feeding
PL149902P03
20/23
Weighing capacity: Theoretical weighing capacity: 180 pieces/min.
Application
Raw material: Most fish, non-sticky
Raw material length: Max. 550 mm
Raw material width: Max. 250 mm
Weighing range: 20-6000 g
Air
Consumption: 80 l/min
Power supply: 3x400 VAC + N + PE
3x400-480 VAC + PE
3x230 VAC + PE
*at nominal speed.
***Avoid direct aggressive flooding of the weighing cell, wiring, or display.
**At nominal speed for minimum and maximum raw material length, depending on
loading method, raw material shape, size, and condition
