2014 Protech 6-trolley heating/cooling smokehouse

The equipment consists of the following:

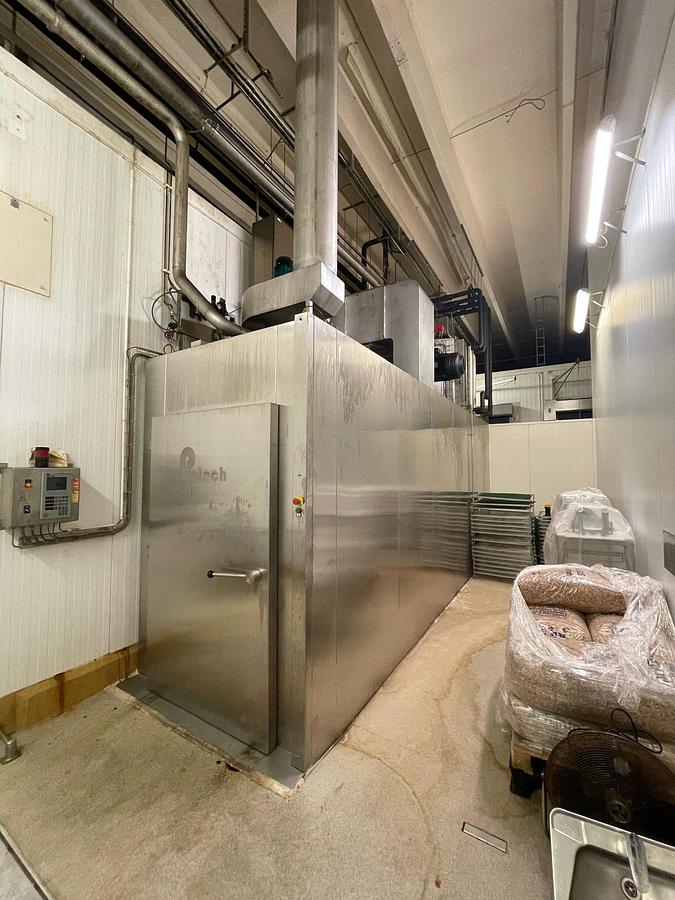

• Protech 6-trolley heating/cooling smokehouse

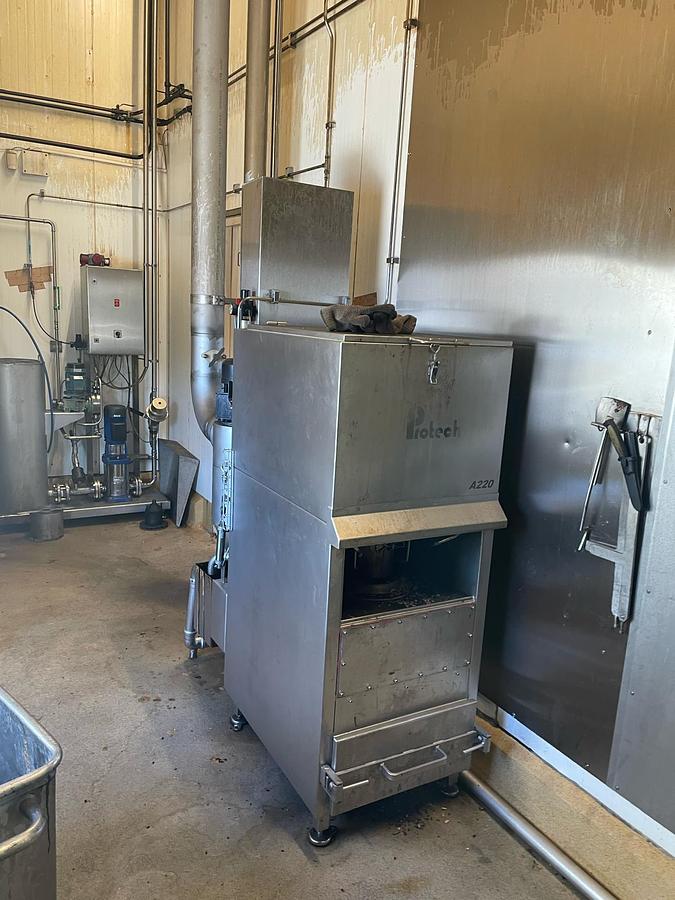

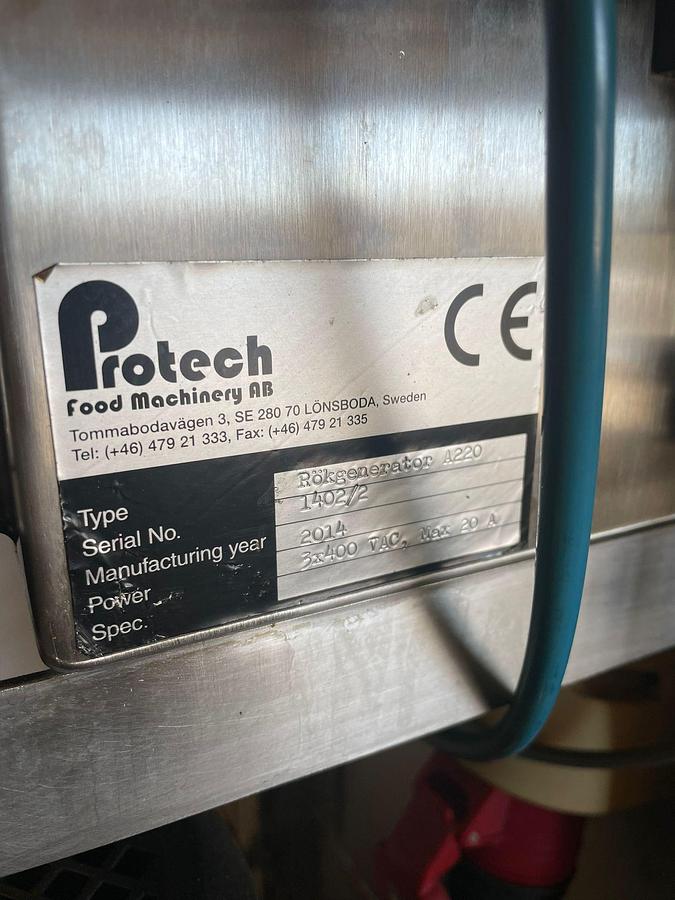

• Smoke generator A220

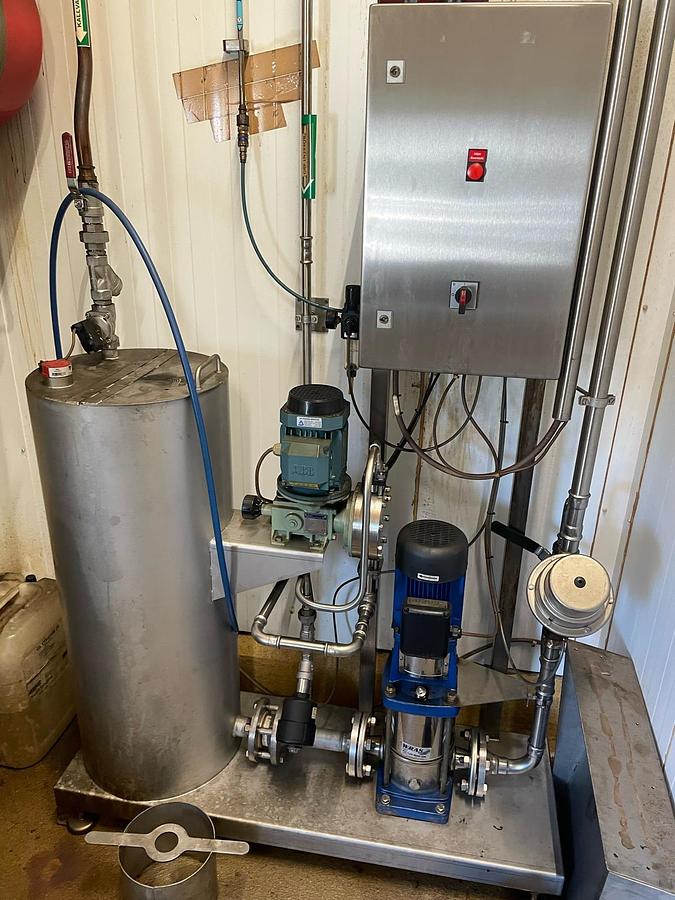

• CIP

3.1 Technical Data

TECHNICAL SPECIFICATION PER CABINET

EXTERNAL DIMENSIONS

Width …………………………………………...1800 mm

Length …………………………………………. 6900 mm

Cabinet height excl. Conditioning………. 2700 mm

Total height incl. Conditioning…………… 4200 mm

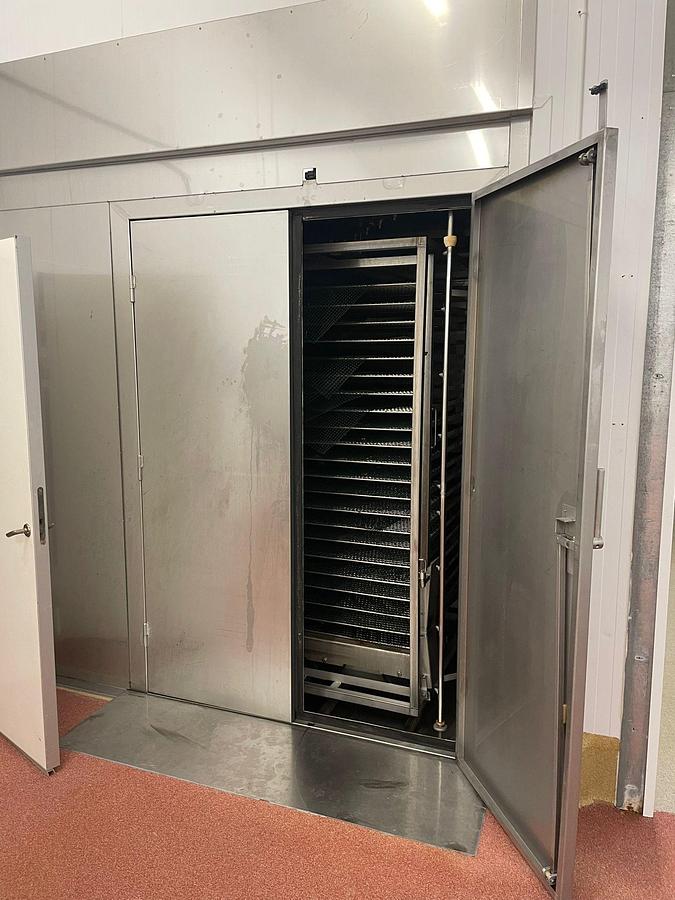

TROLLEY DIMENSIONS

Width…………………………………………………. 1070 mm

Depth…………………………………………………. 1030 mm

Height…………………………………………………. 2045 mm

MEDIA

Circulation fan………………………………… 30 kW

Air circulation………………………………….. Max 20,000 m³/hour

Exhaust fan……………………………………. 3.0 kW

Heating capacity, electricity……………….. 162 kW at 8 bar

Air…………………………………………………. 4–6 bar

Cooling, smoke cooling…………………….. -2 to -4 °C, 30 kW

Cooling, rapid cooling……………………….. -8 °C, 30 kW

ELECTRICAL

Total connection smokehouse…………… 300 A, 3x400 V, 50 Hz

Total connection smoke generator………. 16 A, 3x400 V, 50 Hz

Total connection CIP…………………………. 16 A, 3x400 V, 50 Hz
