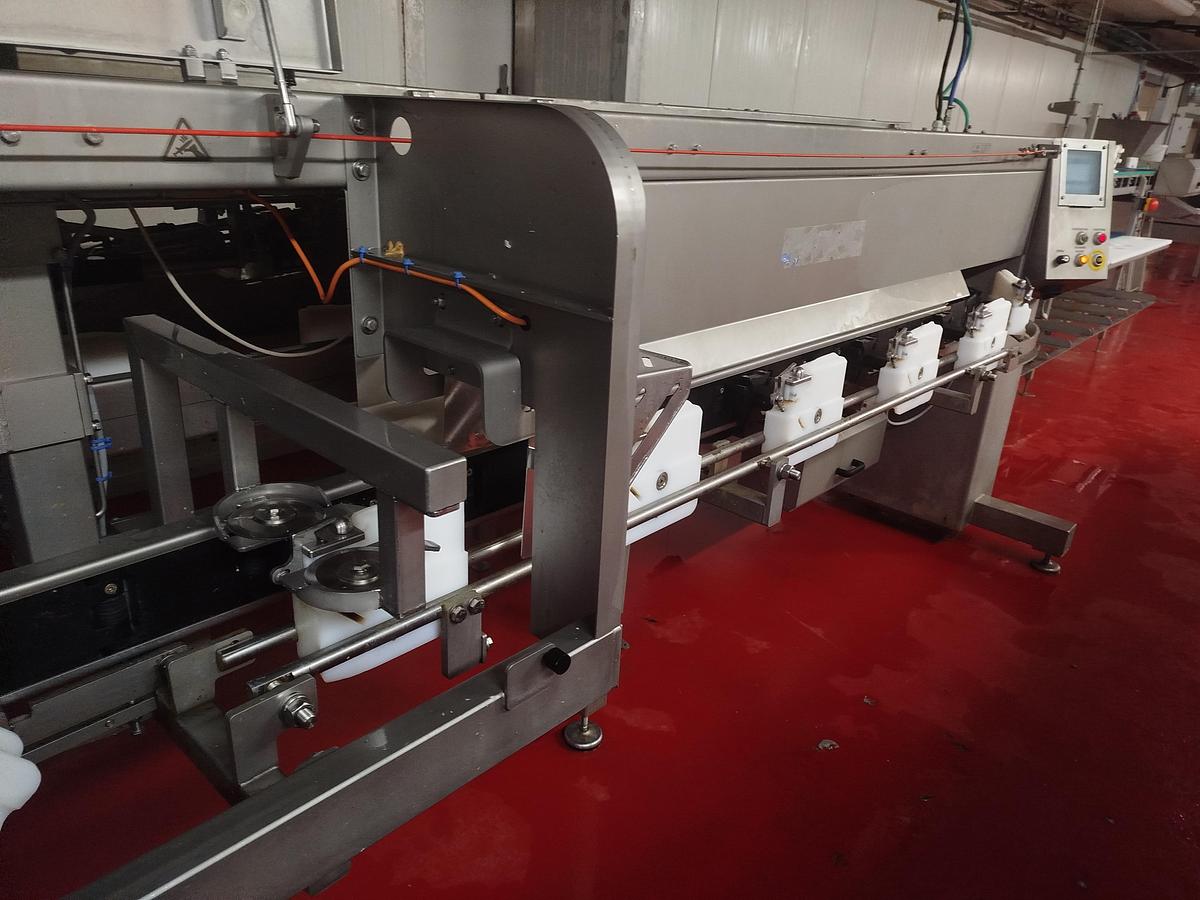

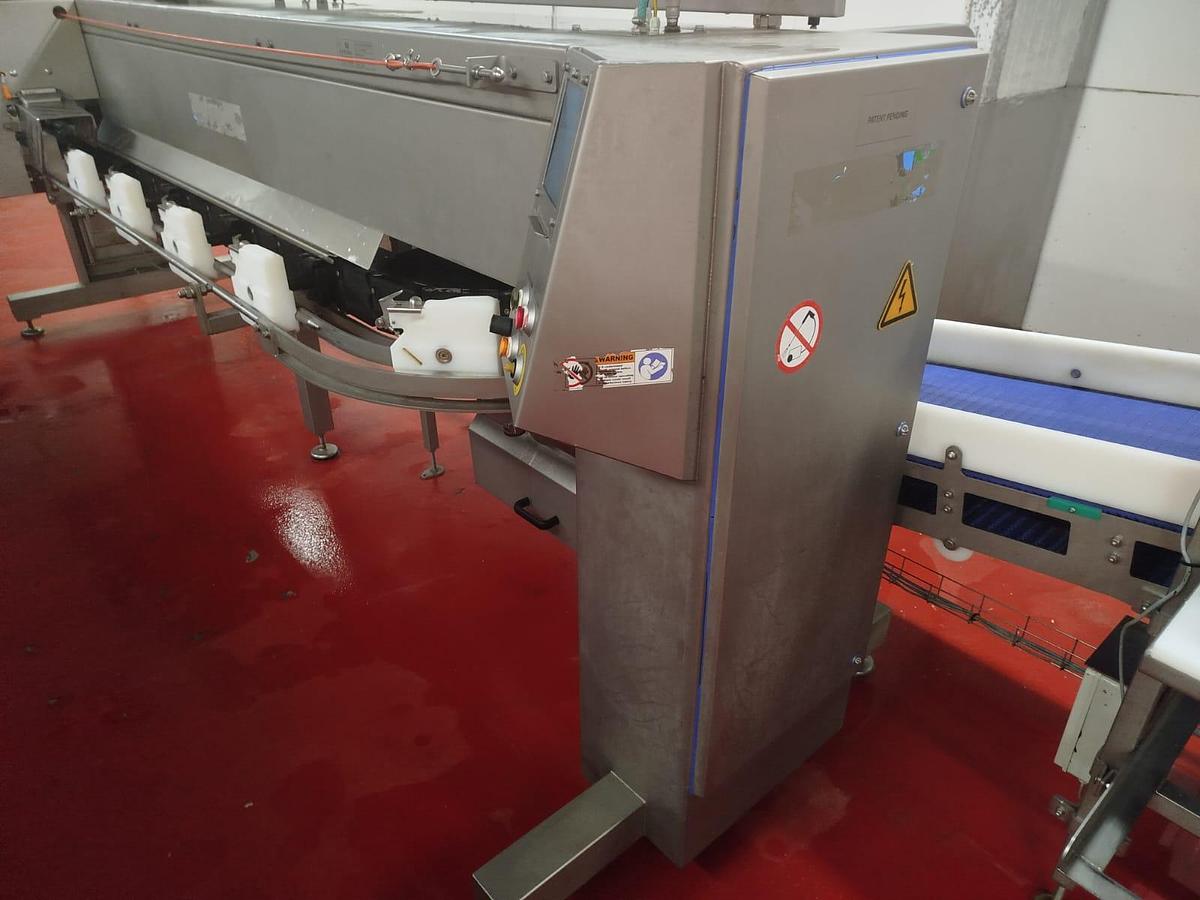

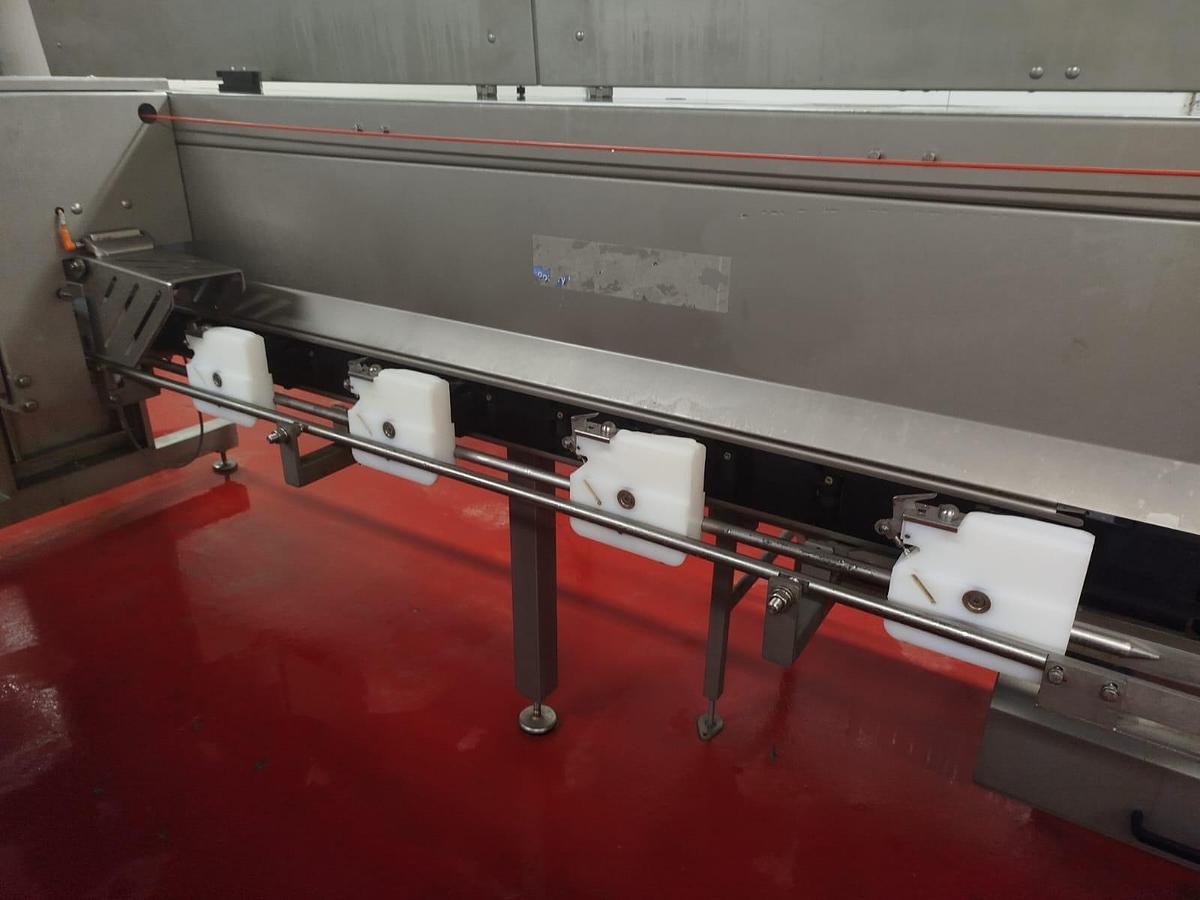

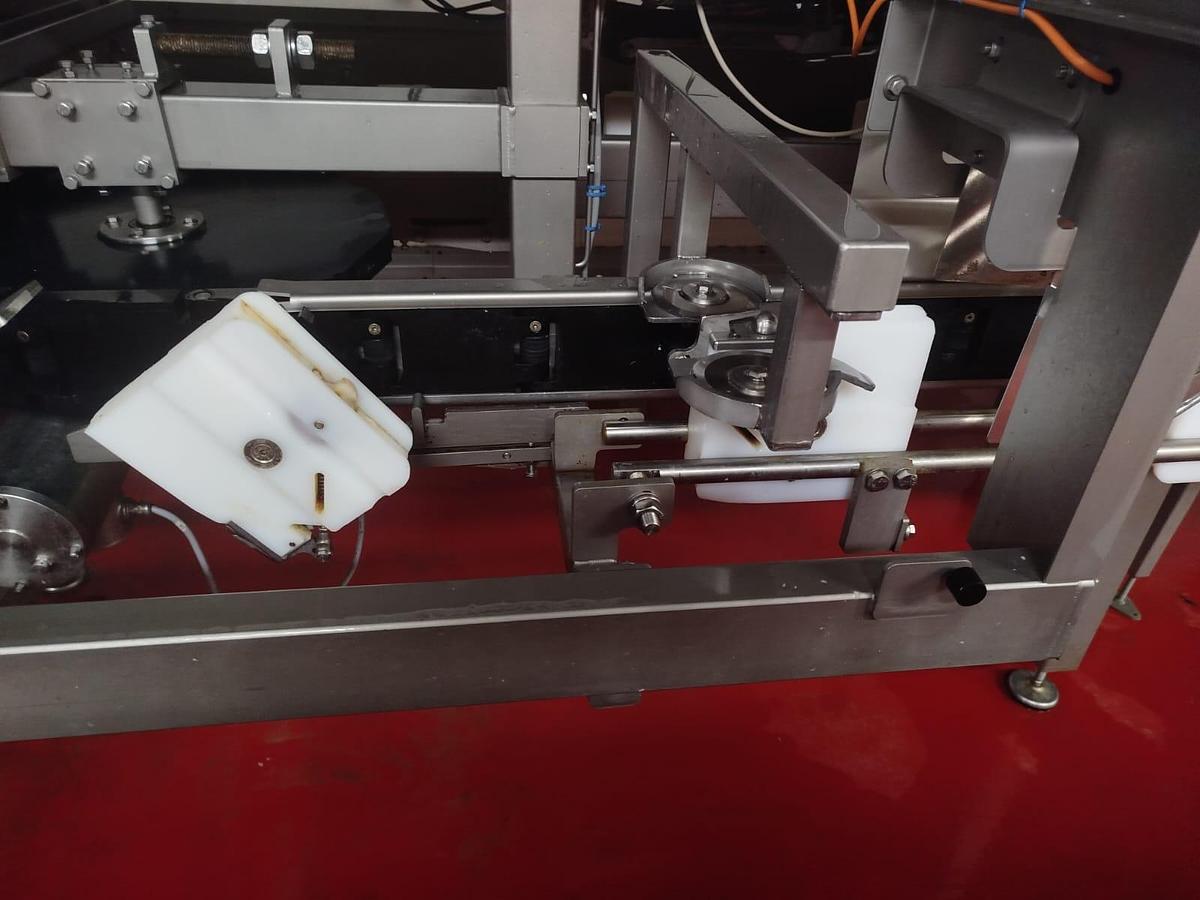

2018 FOODMATE Maxima

Maxima Breast Cap Deboner

Loading area for 2 people.

Precut blades

Deskinner

Wishbone Remover

Fillet Splitter

Carcass Unloader

HMI Touchscreen Panel

Some of the advantages of the Maxima is the small footprint and its speed. It produces up to 3.000 breast caps per hour with minimal loading, inspection and trimming staff. In addition, Maxima’s sanitary design consists of large access doors for easy cleaning and maintenance to address food safety concerns. The machine has large see through doors which provide optimal visibility to all moving parts and can be used for visual performance monitoring.

Technical Specifications

Stainless steel frame and motor

Motors (all stainless steel):

Drive motor (IP66) power is 0,37 kW

Skinning unit motor (IP66) power is 0,55 kW

Deboning unit motor (IP66) power is 0,55 kW

Machine Dimensions:

Length: 4285 mm

Width:  1560 mm

Height:  1540 mm

Weight: approx. 1000 kg

Advantages

• Compact designIntegrated skinnerProduces half filletsReduced labor costConsistent and high yield3,000 breast caps per hourAutomatic wishbone removerMinimal bone content and reworkLow total cost of ownership (TCO)PLC controlled with simple HMI touch screen
