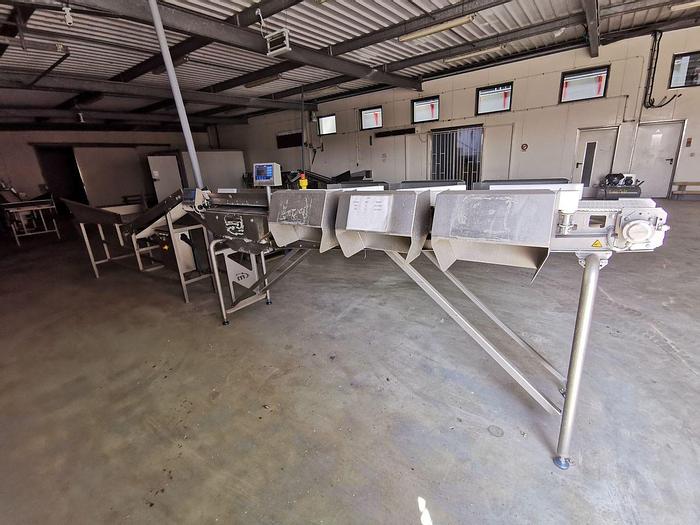

MAREL CG 62 XL

Location

Warsaw, Poland

orCall +48 505 131 190

Specifications

ManufacturerMAREL
ModelCompact Grader CG 62 XL
Year2015

Description

The Compact Grader is a stand-alone solution designed to fulfill the needs of small operations, or those of larger companies requiring a machine to handle temporary or seasonal overflow. It is ideal where the need for automation does not justify the expense of a larger, more substantial grader.


The Compact Grader is classified as economical, yet it is of standard Marel quality.


The CG62 model is specially designed for longer products like whole fish and fillets.




Features

  • Type CG62 80 pieces/minute
  • 6 gates, stand-alone unit
  • Accurate grading
  • Ready to use, easy installation
  • User-friendly interface
  • M2200 terminal
  • Simple grading and batching by weight and/or count
  • Easy to operate

Specifications


1500 - 3000 g / 10 g

Load Cell100 kg

Platform Size300 x 900 mm

Dimensions Outer Dimensions3733 x 625 x 1250 mm (L x W x H)

Weight 200 kg

Belt Width 305 mm (effective width 250 mm)

Construction MaterialAISI 304 stainless steel

Cleaning Normal washing methods

Capacity Throughput80 pieces/minute

Belt Speed1.2 m/s

Application Raw Material Whole fish, fillets, chicken elements, whole chicken

Material Size Max. length: 700 mm

Max. width: 250 mm

Raw Material Weight 100 - 3000 g

Consumption Air80 l/min

Connectivity Ethernet

MPS Grading Infrared CG

Palm Remote Control

Bluetooth CG Palm Remote Control

PowerVoltage1 x 208 - 240

VAC Power

Consumption 500 W

Frequency 50/60 H z
