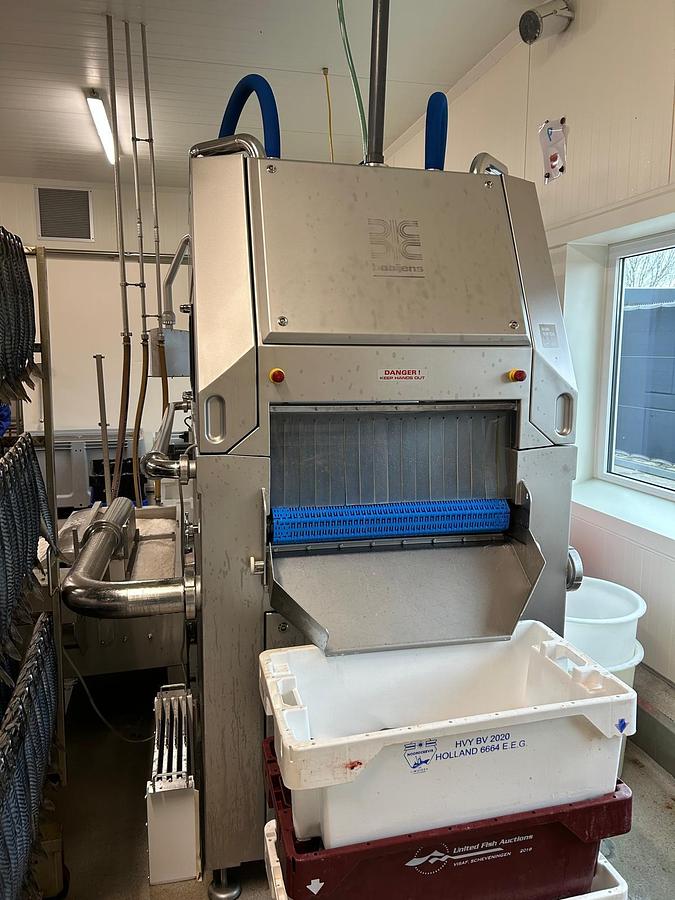

Fomaco FGM 88 DC M3
Specifications
| Manufacturer | Fomaco |
| Model | FGM 88 DC M3 |
| Year | 2021 |
| Stock Number | 00097 |
| Model | FGM 88 DC M3 |
| Max capacity | 90 strokes/min |
| Belt widht | 750 mm |
| Heads | 3 |
Description
MAXIMUM MOVEMENT CONTROL

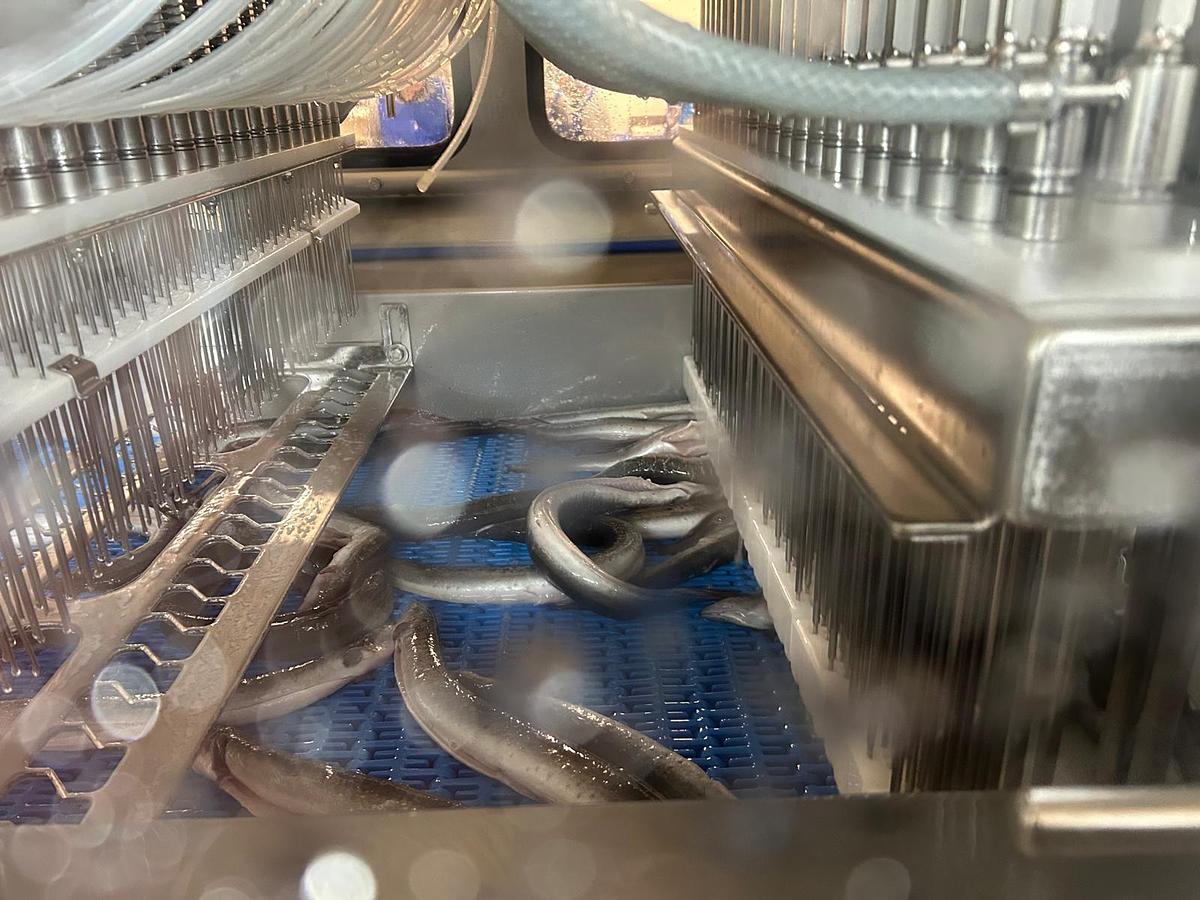

With the M3 you are the one in control. Independent spindle motors for each needle head enable the M3 to adapt to the height of your product. It is even possible to define the movement range of the needle head from top to bottom, giving you an unprecedented control of the salt and marinade distribution. The linear acceleration during injection ensures a uniform salt distribution from top to bottom.
INTELLIGENT SOFTWARE FOR IMPROVED PRODUCTION MANAGEMENT
To provide a smooth and uncomplicated production process the M3 comes with advanced, built-in software. Remote Device Manager (RDM) allows for troubleshooting and updating of the machine directly from the Fomaco facility in Denmark. This both saves valuable production time and minimizes potential downtime. In addition to providing an unlimited number of preprogrammed production profiles, many routines are fully automated:
- Automatic lubrication
- Automatic monitoring of brine temperature
- Automatic control of min. pump pressure
- Automatic troubleshooting
- Automatic cleaning program

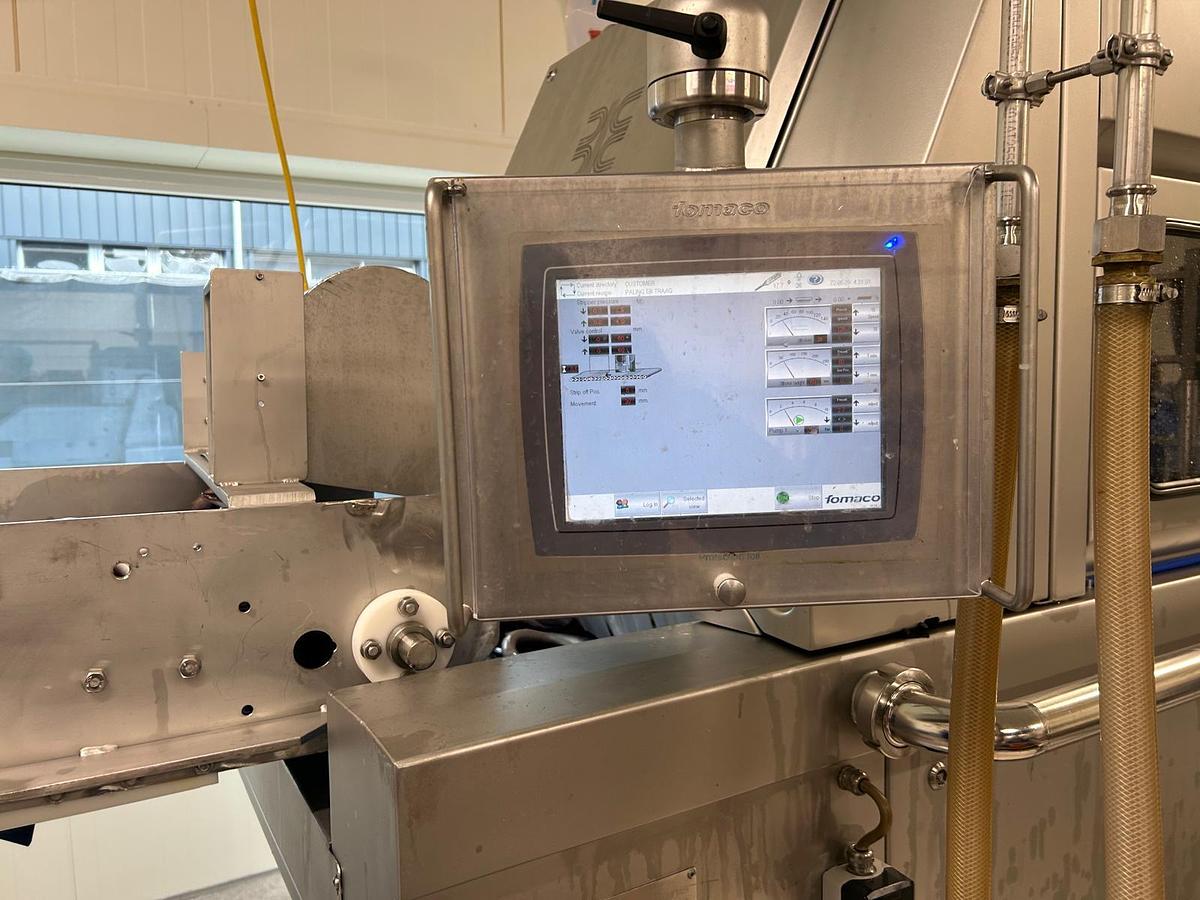

Everything is controlled from the both user friendly and highly intuitive touch screen mounted on a swing arm for convenient operation at all angles.
Last but not least data such as temperature and brine levels are transmitted from filters and brine mixers/storage tanks, while the Inline Weight Controller (IWC) constantly monitors the injection quantity and corrects the settings in case of irregularities.
